TV Macro Lenses


VARIFOCAL(VARIABLE FOCUSING) LENSES

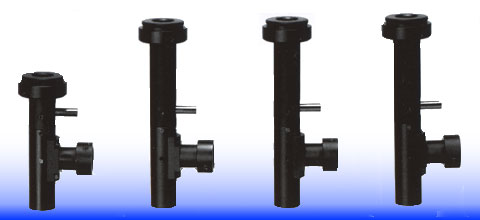

TVMACRO LENSES VARIABLE FOCUSING LENSES IMAGE

Varifocal(Variable focusing) 2/3inch Format

Specifications for TV Macro Lenses for Variable focusing 2/3inch Format
Item No. Magnifi
cation
W.D.(mm) Aperture Depth of Field(mm) Object size(mm) Resolution Power(object) NA TV Distortion
(LessThan)
Notes
MQM6000 x1.8-2.2 82-68 F12 - F14.5 ±0.2(x2.00) 3.7x4.9-3.0x4.0 10-8μm 0.076 0.2% Coaxial
MQJ6000 x3.5-4.5 84-68 F23 - F30 ±0.1(x4.00) 1.9x2.5-1.5x2.0 5-4μm 0.076 0.2% Coaxial
MQK6000 x5.4-6.8 84-67 F36 - F45 ±0.07(x6.00) 1.2x1.6-1.0x1.3 4-3μm 0.076 0.2% Coaxial
MQL6000 x7.3-9.0 84-67 F48 - F60 ±0.06(x8.00) 0.9x1.2-0.7x1.0 4-3μm 0.076 0.2% Coaxial
YJSH000 x0.2-0.6 120-50 - ±14(x2.00) 33x44-
11x15
90-30μm - 0.1% Straight
YRHC000 x0.6-1.0 125-92 - ±2(x0.60) 11x15-
6.6x8.8
30-18μm - 0.1% Straight
MRH3000 x0.65-1.0 105-75 F10 - F16 ±1(x0.65) 10x14-
6.6x8.8
27-18μm - 0.1% Coaxial
MRG3000 x1.0-1.5 105-92 F11 - F17 ±0.4(x1.00) 6.6x8.8-4.4x5.9 18-12μm 0.045 0.1% Coaxial

Varifocal(Variable focusing) 1/2inch Format

Specifications of TV Macro Lenses for Variable Focusing 1/2inch Format
Item No. Magnifi
cation
W.D.(mm) Aperture Depth of Field(mm) Object size(mm) Resolution Power(object) NA TV Distortion
(LessThan)
Notes
MRK2000 x1.5-1.9 43-36 F17 - F21 ±0.35(x1.50) 3.2x4.3-2.5x3.4 9-7μm 0.045 0.2% Coaxial
MRL2000 x2.0-2.4 42-35 F17 - F20 ±0.20(x2.00) 2.4x3.2-2.0x2.7 7-6μm 0.059 0.2% Coaxial
MRM2000 x3.0-3.5 40-34 F19 - F22 ±0.10(x3.00) 1.6x2.1-1.4x1.8 5-4μm 0.079 0.2% Coaxial
MRP2000 x4.5-4.8 37-32 F23 - F24 ±0.05(x4.50) 1.1x1.4-1.0x1.3 5-4μm 0.100 0.2% Coaxial
