3CCD Lenses


3CCD Lenses

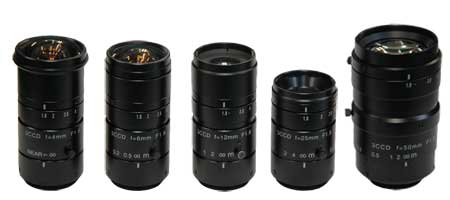

3ccd lenses image 3CCD Lenses Leaflet (620KB)
3CCD Lenses Specification
Item No. Focal Length Iris Range Angle of View at Infinity M.O.D Filter Thread Dimention Weight Note
GMHR3D24018C 4.0mm F1.8-16 1/2" 83°4' x 64°5 ' x 99°9' 0.1m M=46.0,P=0.75
(Option)
Φ34x66.3mm 115g -
GMHR3D26018C 6.0mm F1.8-16 1/2" 58°8' x 71°6 ' x 44°9' 0.1m M=37,P=0.5
(Option)
Φ30x 62.7mm 100g -
GMHR3D21218C 12.0mm F1.8-16 1/2" 30°4' x 37°9 ' x 22°8' 0.15m M=27.0,P=0.5 Φ30x58.5mm 90g -
GMHR3D22518C 25.0mm F1.8-16 1/2" 14°6' x 18°2 ' x 11°0' 0.2m M=27.0,P=0.5 Φ30x47.0mm 80g -
GMHR3D25018C 50.0mm F1.8-16 1/2" 7°0' x 8°9 ' x 5°3' 0.3m M=35.5,P=0.5 Φ40x66.0mm 80g -

3CCD ,Zoom Lens

3CCD ,Zoom Lens Specification
Item No. Focal Length Iris Range Angle of View at Infinity M.O.D Filter Thread Dimention Weight Note
GMZ3D85900MCN 8.5-90 mm F2.5-Close 31°3' x 23°5 ' - 3 °2' x 2 °4' 0.15m M=48.0,P=0.75 Φ60 x 129mm 420g -

3CCD Macro Three Motorized Zoom Lenses

3CCD Macro Three Motorized Zoom Lenses Specification
Item No. Focal Length Iris Range Angle of View at Infinity M.O.D
(22mm at Macro)
Filter Thread Dimention Weight Note
GAZ3D270112M 7-112mm F1.4-Close 1/2" 49°1' x 37°8' - 3°3' x 2°5' 1.0m M=86, P=0.1 121x100x176mm 1500g B-Mount
GAZ3D395152M 9.5-52mm F1.8-Close 2/3" 49°7' x 38°3' - 3°3' x 2°5' 1.0m M=86, P=0.1 121x100x176mm 1500g B-Mount
