Telecentric Lenses

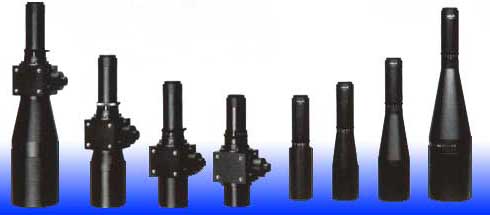

Telecentoric Lenses image

Standard Telecentric Lenses

Standard Telecentric Lenses
Item No. Magni
fication
W.D.
(mm)
Aperture Depth of Field(mm) Object size(mm) Resolution
Power
(obeject)
NA TV Distortion
(LessThan)
Notes
01T X0.1 342.1 F4.0-C 33.5 66x88 61μm 0.0055 0.03 Straight
01DT X0.1 342.1 F4.0-C 33.5 66x88 61μm 0.0055 0.03 Coaxial
02T X0.2 158 F4.0-C 11 33x44 30μm 0.025 0.03 Straight
02DT X0.2 158 F4.0-C 11 33x44 30μm 0.025 0.03 Coaxial
03T X0.3 105 F4.0-C 5 22x29.3 20μm 0.038 0.04 Straight
03DT X0.3 105 F4.0-C 5 22x29.3 20μm 0.038 0.04 Coaxial
04T X0.4 78.7 F4.0-C 2.7 16.5x22 15μm 0.050 0.04 Straight
04DT X0.4 78.7 F4.0-C 2.7 16.5x22 15μm 0.050 0.04 Coaxial
05T X0.5 62.1 F4.0-C 1.7 13.2x17.6 12μm 0.063 0.02 Straight
05DT X0.5 62.1 F4.0-C 1.7 13.2x17.6 12μm 0.063 0.02 Coaxial
07T X0.7 71 F14.4 ą0.6 6.6x8.8 13μm 0.025 -0.07 Straight
07DT X0.7 71 F14.4 ą0.6 6.6x8.8 13μm 0.025 -0.07 Coaxial
1T X1.0 71 F20.0 ą0.6 6.6x8.8 13μm 0.025 -0.07 Straight
1DT X1.0 71 F20.0 ą0.6 6.6x8.8 13μm 0.025 -0.07 Coaxial
2T X2.0 66 F26.3 ą0.25 3.3x4.4 10μm 0.038 0.04 Straight
2DT X2.0 66 F26.3 ą0.25 3.3x4.4 10μm 0.038 0.04 Coaxial
4T X4.0 70 F32.0 ą0.1 1.65x2.2 6μm 0.063 0.10 Straight
4DT X4.0 70 F32.0 ą0.1 1.65x2.2 6μm 0.063 0.10 Coaxial
6T X6.0 70 F48.0 ą0.1 1.1x1.47 6μm 0.063 0.15 Straight
6DT X6.0 70 F48.0 ą0.1 1.1x1.47 6μm 0.063 0.15 Coaxial

Item No. Magni
fication
W.D.
(mm)
Aperture Depth of Field(mm) Object size(mm) Resolution
Power
(obeject)
NA TV Distortion
(LessThan)
Notes
50NL x0.5-x1.0 50mm F2.8-Close 2/3' Infinity
to 69mm
0.4%(x0.5)%
-0.1%(x1.0)
M=37.5,
P=0.75
85-116mm 7Groups and
9Elements

Telecentric Lenses for the Megapixel Cameras

Telecentric Lenses for the Megapixel Cameras
Item No. Magni
fication
W.D.
(mm)
Aperture Depth of Field(mm) Object size(mm) Resolution
Power
(obeject)
NA TV Distortion
(LessThan)
Notes
01TMP X0.1 342 F8-40 33.5 66x88 61μm 0.0055 +0.035 Straight
01TDMP X0.1 342 F8-40 33.5 66x88 61μm 0.0055 +0.035 Coaxial
02TMP X0.2 167 F8-40 8.4 33x44 31μm 0.011 +0.012 Straight
02TDMP X0.2 167 F8-40 8.4 33x44 31μm 0.011 +0.12 Coaxial
03TMP X0.3 108 F8-40 3.7 22x29 20μm 0.0165 +0.008 Straight
03DTMP X0.3 108 F8-40 3.7 22x29 20μm 0.0165 +0.008 Coaxial
04TMP X0.4 78.5 F8-40 2.1 16x22 15μm 0.022 -0.015 Straight
04DTMP X0.4 78.5 F8-40 2.1 16x22 15μm 0.022 -0.015 Coaxial
05TMP X0.5 60.7 F8-40 1.34 13x17 12μm 0.0275 -0.028 Straight
05DTMP X0.5 62.1 F8-40 1.34 13x17 12μm 0.0275 -0.028 Coaxial

Telecentric Lenses for the 1.1 inch Megapixel Cameras

Telecentric Lenses for the 1.1 inch Megapixel Cameras
Item No. Magni
fication
W.D.
(mm)
Aperture Depth of Field(mm) Object size(mm) Resolution
Power
(obeject)
NA TV Distortion
(LessThan)
Notes
0.15T5MP X0.15 342 F12-60 20 63x84 54μm 0.0063 +0.035 Straight
0.15DT5MP X0.15 342 F12-60 20 63x84 54μm 0.0063 +0.035 Coaxial
0.3T5MP X0.3 167 F12-60 5 31x42 27μm 0.0125 +0.012 Straight
0.3DT5MP X0.3 167 F12-60 5 31x42 27μm 0.0125 +0.012 Coaxial
0.45T5MP X0.45 108 F12-60 2.2 21x28 18μm 0.0188 +0.008 Straight
0.45DT5MP X0.45 108 F12-60 2.2 21x28 18μm 0.0188 +0.008 Coaxial
0.6T5MP X0.6 78 F12-60 1.3 15x21 13.5μm 0.025 -0.015 Straight
0.6DT5MP X0.6 78 F12-60 1.3 15x21 13.5μm 0.025 -0.015 Coaxial
0.75T5MP X0.75 60 F12-60 0.8 12x16 11μm 0.0313 -0.028 Straight
0.75DT5MP X0.75 60 F12-60 0.8 12x16 11μm 0.0313 -0.028 Coaxial

Object Side Telecentric Lenses for 15.2mm x 15.2mm Megapixel Cameras

Object Side Telecentric Lenses for 15.2mm x 15.2mm Megapixel Cameras
Item No. Magni
fication
W.D.
(mm)
Aperture Depth of Field(mm) Object size(mm) Resolution
Power
(obeject)
NA TV Distortion
(LessThan)
Notes
1OT152MP X1.0 65.5 - 0.28 15.2x15.2 5.4μm 0.0063   Coaxial
2OT152MP X2.0 65 - 0.095 7.6x7.6 3.4μm 0.1 - Coaxial
