Line sensor Lenses

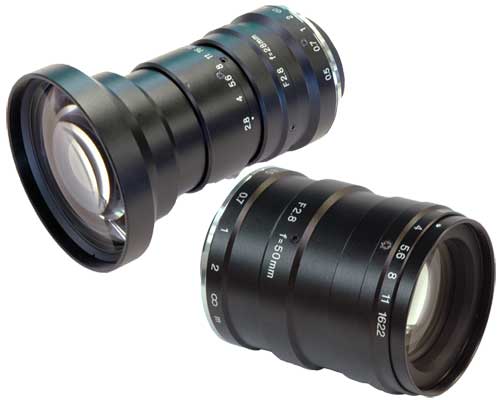

Line sensor lenses image

Line sensor Lenses

Line sensor Lenses Specifications
Item No. Focal Length Iris Range Sensor Size MOD Frange Back Filter Size Mount
GLS2828F-N 28mm 2.8 -16 Ø43.2mm 0.3m 46.5mm in air M72 x 0.75 F-Mount
GLS2828F 28.5mm 2.8 -16 Ø30mm(3CCD) 0.5m 46.5mm in air M58 x 0.75 F-Mount
GLS3528F-N 35mm 2.8 - 22 Ø43.2mm 0.26m 46.5mm in air M52 x 0.75 F-Mount
GLS3528F 35mm 2.8 - 22 Ø30mm(3CCD) 0.5m 46.5mm in air M62 x 0.75 F-Mount
GLS5014F 51.55mm 1.4 - 16 Ø29mm 0.358m
(x0.149)
46.5mm in air M58 x 0.75 F-Mount
GLS5028F-N 50mm 2.8 - 22 Ø43.2mm 0.26m 46.5mm in air M52 x 0.75 F-Mount
GLS5028F 52.0mm 2.8 -16 Ø30mm(3CCD) 0.5m 46.5mm in air M46 x 0.75 F-Mount
GLS5526F 54.6mm 2.6 - 16 Ø44mm 146mm(x0.067)-163.6mm(x0.35) only 46.5mm in air M67 x 0.75 F-Mount
GLS8556M+ADP
NEW
85mm F5.6-32 Ø58mm 0.8m - possible,if enough Quantity 550g
GLS10028F 100mm 2.8-32 Ø43mm 0.3m 46.5mm in air M55 x 0.75 F-Mount

Objekt Side Large Format Telecentric Lens

Objekt Side Large Format Telecentric Lens Specifications
Item No. Magnification Focal Length Image Size Object Space MTF Distortion Mount Weight
LX2.35
NEW
X2.35 166.5mm Ø64mm 235LP/mm 0.03% M72x0.75 2.2kgs
LX2.5
NEW
X2.5 143.65mm Ø84mm 235LP/mm 0.01% M95x1 2.2kgs
LX3.5
NEW
X3.5 143.65mm Ø84mm - 0.01% M95x1 2.2kgs
LX5
NEW
X5 143.65mm Ø84mm - 0% M95x1 2.2kgs
